V-TEK ASSOCIATES MACHINE TRAINERS
MSAT-03 - Machine Shaft Alignment Trainer Two adjustable modules with precision stainless steel shims, jack blocks and jack screws insure repeatable adjustments in both the vertical and horizontal axes. This realistic machine simulator incorporates one and a quarter inch diameter solid stainless steel shafts and fits standard couplings. The robust yet portable design helps teach both laser and dial indicator alignment methods. Adjustable friction of shaft rotation allows user to simulate any condition from axial float to locked shaft.

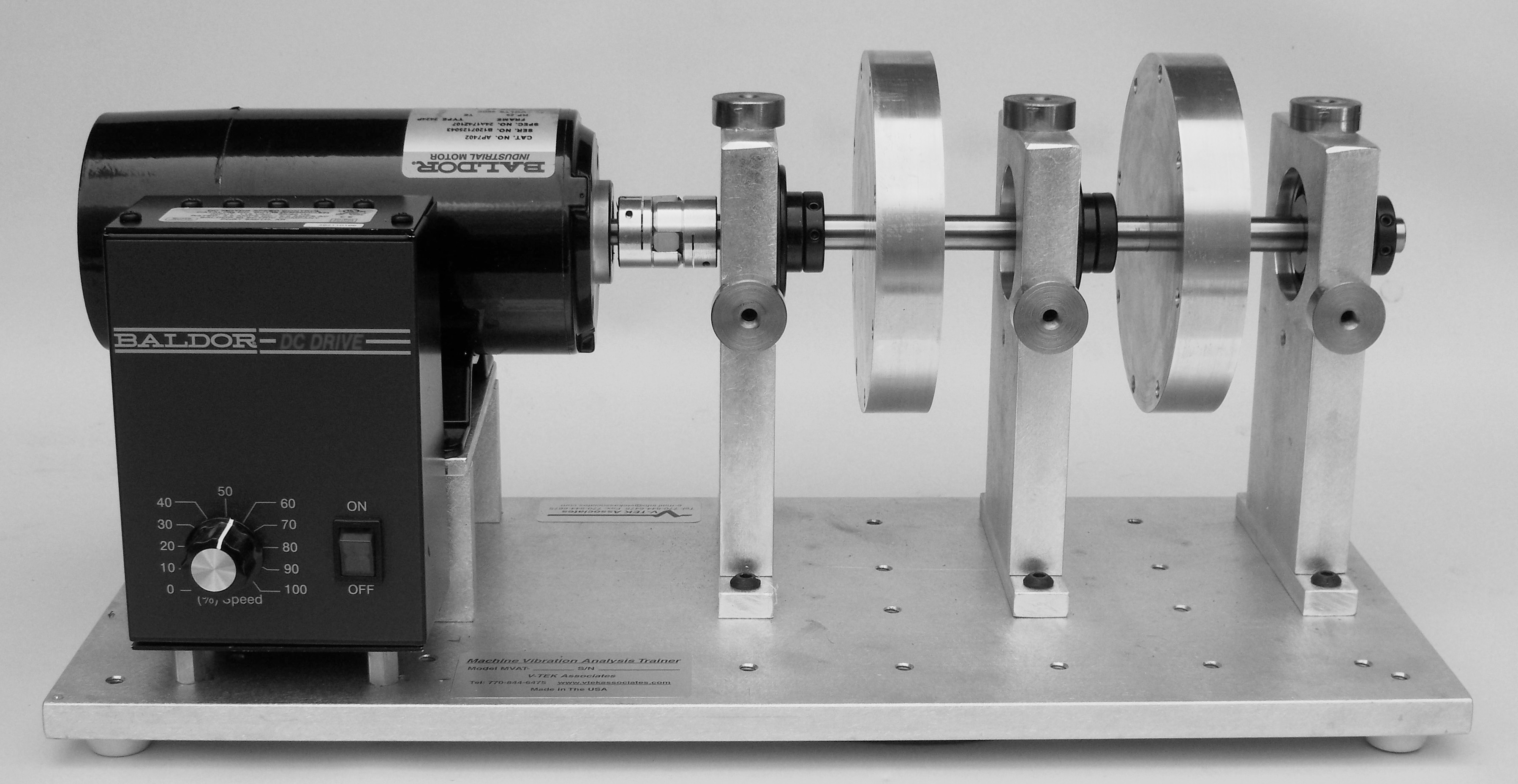

MVAT-02 - Machine Vibration Analysis Trainer Precision tool designed to teach vibration analysis under controlled conditions. Study signatures of multiple forms of machine faults at variable speeds, including unbalance, misalignment, looseness, etc., using various sensors, diagnostic test equipment and test methods.
MSAT-04 - Machine Shaft Alignment Trainer Two adjustable modules with precision stainless steel shims, jack blocks and jack screws insure repeatable adjustments in both the vertical and horizontal axes. This realistic machine simulator incorporates one inch diameter solid stainless steel shafts and fits standard couplings. The robust yet portable design helps teach both laser and dial indicator alignment methods. Adjustable friction of shaft rotation allows user to simulate any condition from axial float to locked shaft.
MSAT-03 MVAT-02 MSAT-04
MPAT - Machine Pulley Alignment Trainer Study various belt coupling, tension and alignment methods. Standard size sheaves enable the use of rim or in-groove laser alignment systems. Can also be used to evaluate accuracy, ease of use and repeatability of instruments and methods used to perform alignments.
MBAT- Machine Bearing/Vibration Analysis Trainer Portable belt driven shaft with two rotors and movable bearing posts. Variable speed motor enables a wide variety of load settings and speeds. Can also be used for balancing studies and to evaluate the accuracy, ease of use, repeatability of instruments and methods used to detect bearing faults.
MVAT4>6- Machine Vibration Analysis Trainer - Rotor Kits Precision tools designed to teach vibration analysis under controlled conditions. Belt or Direct Drive, Single, Dual or Overhung Rotors. Study signatures of multiple forms of machine faults at variable speeds, including unbalance, looseness, etc., using various sensors, diagnostic test equipment and methods.
MPAT-02 MBAT-03 MVAT4-01 MVAT5-01 > MVAT6-01

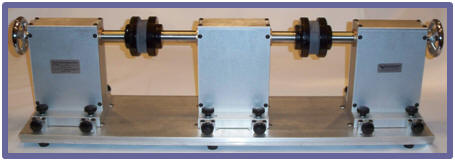

MACHINE TRAIN SHAFT ALIGNMENT TRAINER, MSAT-T30
